Quick Details

  • Use For: Passenger
  • Driving Type: Electric
  • Power: 351 - 500W
  • Voltage: 48V
  • Body Type: Open
  • Certification: CE
  • Brand Name: ZZMERCK
  • Place of Origin: Henan, China (Mainland)
  • Model Number: M-TB02
  • Size: 2.35*1.12 *1.7 m
  • Motor: DAPU 48v 500watt brushless front hub motor
  • Battery: 48v 20ah lead acid battery
  • Pedal assist: DAPU Torque sensor 6 levels
  • Max. speed: Limited to 16 mph (25 kph)
  • Estimated Min and Max range: 25 to 37 miles (40~60 km)
  • Loading Capacity: 300 kg
  • Frame: High carbon steel
  • Brake: Disc brake
  • Tires: 26x1.75
  • Gears: Shimano 6 gears

Packaging & Delivery

Packaging Details Inner Iron support + outside wooden box.
20"GP: 20 pcs,
40"GP: 40 pcs
Delivery Time 20 days
Product Description

The Electric Pedicab Tricycle is a green solution to the challenges of modern transportation with a zero emissions footprint. Pioneering design and craftsmanship combine to provide a viable alternative to the internal combustion engine.

ZZMERCK Rickshaw

ZZMERCK strive to support entrepreneurial, environmentally minded people who seek independent employment. We're strongly committed to empowering individuals to fulfill their dreams of owning and operating a profitable, yet environmentally friendly business.

Features.

- DAPU 48v 500watt front hub motor with strong power
- 48v 20ah lead acid battery which last Max driving distance 60 km
- Loading capacity 300kg : 1 driver + 2 adult passengers in comfort.
- Shimano 6 speeds/gears offer unique driving experience.
- Torque sensor pedal assist with 6 levels, EPAC system which accord with European standard
- Driver's seat adjustable inclination facilitates driving position.
- Rolling advertising surfaces on bike cabin and wheels
- Lockable box under the seat for storage of the riders belongings or toolkit
- Aluminum foot step for passenger and LED headlight
- The passenger cabin can be lift up to see the whole electric circuit under the seat, it's convenient for maintenance
Detailed Images

Powerful DAPU 500watt Brushless Front Hub Motor

Multifunctional DAPU LCD Display

Customs Alloy Differential

Product Specs
Frame
Steel
Tire
Front 20x2.125 inch, Rear 19-2.25 inch
Rim
Alloy
Spoke
10G stainless steel
Brake
Front mechanical disc brake, Rear hydraulic disc brake
Chain
KMC
Pedal
Wellgo alloy
Hub
Alloy
Differential
Custom alloy differential
Canopy
Waterproof 1860D PVC
Cranket
DAPU Alloy 170 mm 38T
Derailleur
Shimano RD-TX35 6 speed derailleur
Cassette
Shimano MF-TZ20 6 speed cassette
Shifter
Shimano TX50-6 6 speed shifter
Motor
DAPU 48v 500watt brushless front hub motor
Battery
48v 20ah lead acid battery
Display
DAPU LCD display
Indicates current speed, trip distance, pedal assist level and battery power
Pedal Assist
DAPU torque sensor pedal assist with 6 levels
Charger
100V - 240V AC, 50/60 Hz
Max speed
Limited to 16 mph (25 kph)
Estimated Min and Max range
25 to 37 miles (40~60 km)
Estimated Charge Time
7 hours
Climbing Capacity
20%
Loading Capacity
300 kg
Dimension
2.35(L)x1.12(W)x1.7(H) m
Net Weight
120 kg
Colors
FAQ

Q1: What electric system do you offer?
A: Our rickshaw is equipped with Japanese DAPU electric system, including powerful 500w front hub motor, efficient controller, multifunctional LCD panel and torque sensor pedal assist.

DAPU offer top quality electric systems that ensure your rickshaw experience in an exciting and revolutionary way.

Q2: What colors are available?

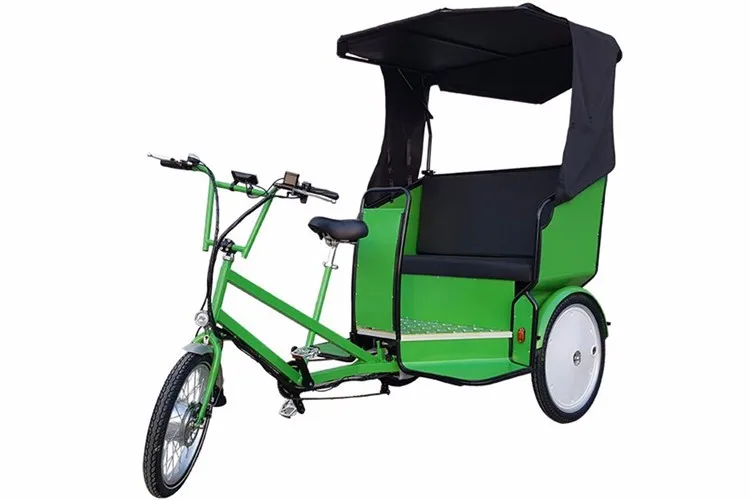

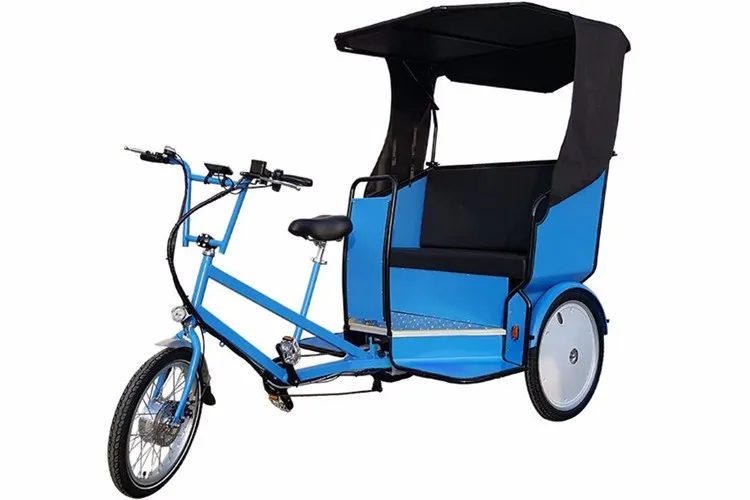

A: The available colors are red, yellow, blue, green, white and black.

Q3: How fast does it go?
A: The top speed is electronically limited to 25 kph for safety reasons.

Q4: How many miles can it travel on a single charge?
A: It depends on weight, assistance, terrain, weather conditions etc. The estimated range is 37 miles (60 km).

Q5: How many people can fit in a rickshaw?
A: Each rickshaw can carry up to 3 adults,including rider.

Q6: Can it go up hills with 2 passengers on them?
A: It is designed for urban transport and traveling on a flat route. It can only go up slight hills.

Q7: Can the battery take out easily for quick change?
A: The battery is under the cabin, which can be lifted. It is easy to take out the battery.

Q8: Does it have a storage place under the passenger seat?
A: Yes, it has a storage place which can fit in handbags.

Q9: Does it come fully assembled or do I have to put it together?
A: It comes 50% assembled (the classic and electric cable are fully built). It will require half an hour of assembling and adjusting for the average person.
